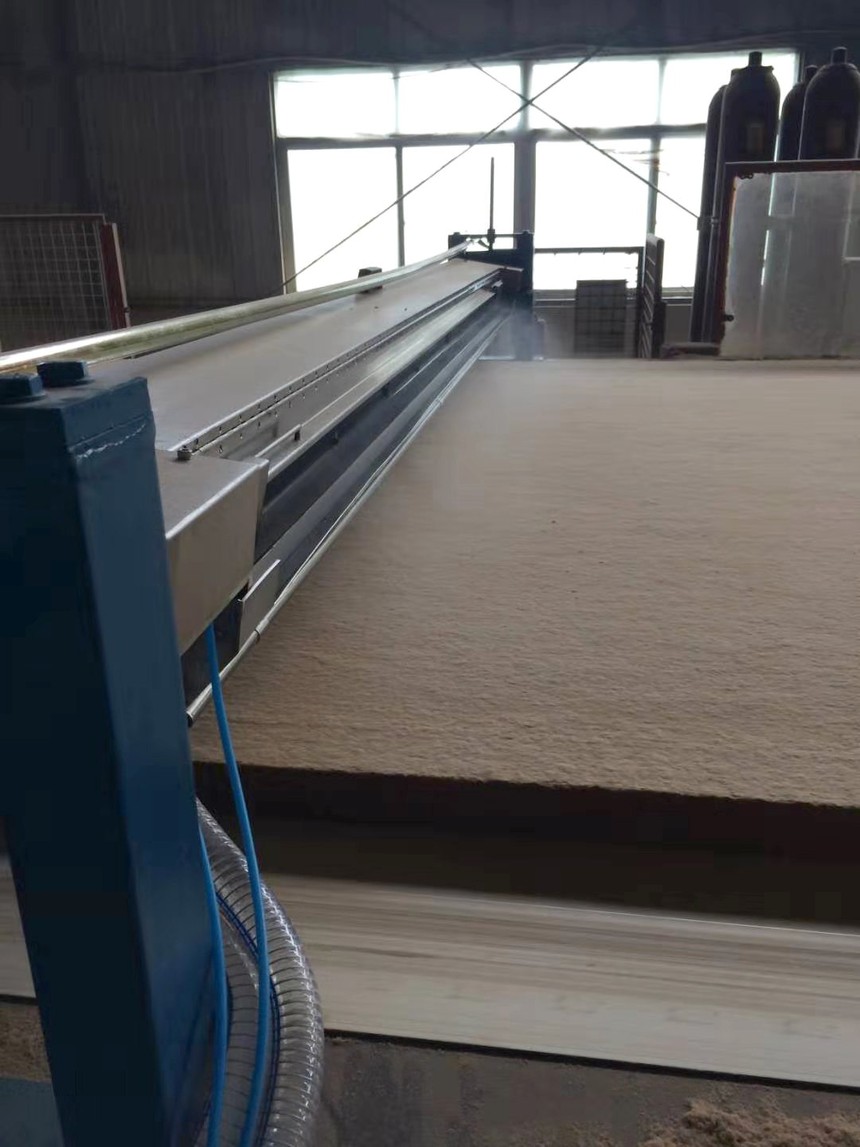

Slab humidifier

No price
Collect
DESCRIPTION


Slab humidifier

一、Technical performance and standard configuration:

1. The whole machine is made of high quality stainless steel, specially designed for special structure.

2.Effective width: can be customized according to customer requirements.

3.the plane drive belt uses imported Swiss habasit (Habasit)

4. the transmission system uses low power, high speed motor, speed reaches 6000 rev / min

5. The spray disc is precision injection molded with imported special engineering plastics, and then precision machined.

6. The liquid supply unit adopts a variable frequency speed control water pump with water outlet and return water device.

7. The water supply pump uses a centrifugal water pump to ensure a smooth supply of water and water pressure.

8.electrical control system using Siemens.

9.imported South Korea AUTONICS automatic speed encoder, automatically adjust the liquid supply according to the speed of the vehicle, to achieve online control.

10.Power supply specification: 380V    50HZ  1KW

二、The structural composition

1.the rack

2. SUS304 all stainless steel molded case

3. the spray tray                                      12/24 only

4.Jet motorAC380V/0.25Kw/2800RPM                   1 set

5. Water pumpAC380V/0.25Kw/1400RPM                1 set

6. Water tank600×600×600mm(length × width × height)    1 set

7. Anti-drip device                                    1 set

二、parameter

1. Jet widthJS-08 type  2724±10mm

                  JS-04 type  1424±10mm

2. Compressed air0.1-0.8Mpa

3. Liquid volume4~1800ml//min

4. Total equipment power1Kw

5. power supply380V   50Hz

6. DimensionsJS-08 type main unit  3124×350×300mm

               JS-04 type host  1780×350×300mm

7. Total weight≈250Kg

Effect: improve the quality of the board surface and reduce the solidified layer
